Teck, Vertical Riser Teck, & AIRGUARD® Cables

Teck, Vertical Riser Teck, and AIRGUARD® address distinct installation needs for industrial and vertical‑riser installations. Each product targets specific installation needs: Teck for general industrial feeders, Vertical Riser Teck for continuous vertical runs, and AIRGUARD® to deliver high crush resistance and corrosion protection on long runs.

Understanding the differences in application can help ensure the right cable is selected for the job.

Teck Cable

Low Voltage & Medium Voltage

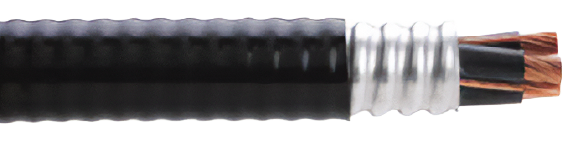

Prsymian Teck Cable


Description:

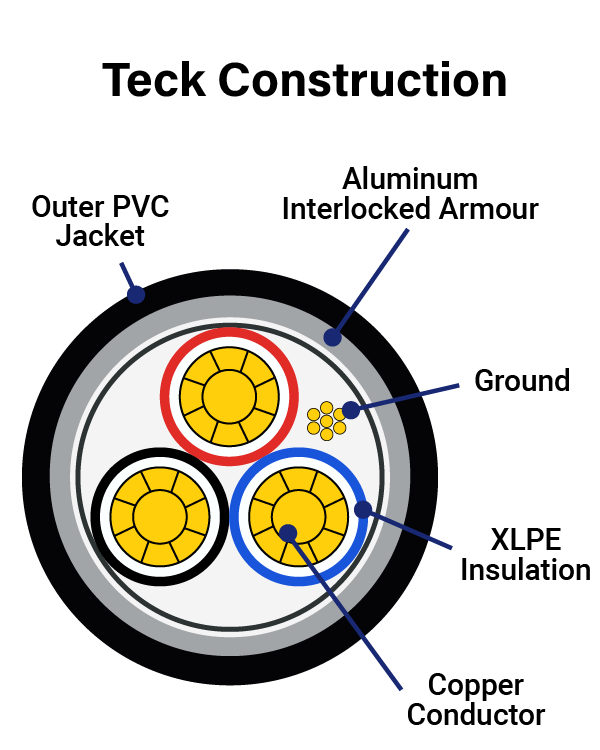

Teck Cable is an armoured cable designed for general industrial power, commercial power, and control circuits.

Features:

  • Interlocked aluminum armour provides reliable mechanical protection.
  • Suitable for direct burial, cable tray, and exposed applications.
  • Proven design widely used for industrial feeders, equipment wiring and infrastructure projects.
  • Available in low voltage (LV) 600V & 1000V, and medium voltage (MV) ratings up to 35kV.

Table:

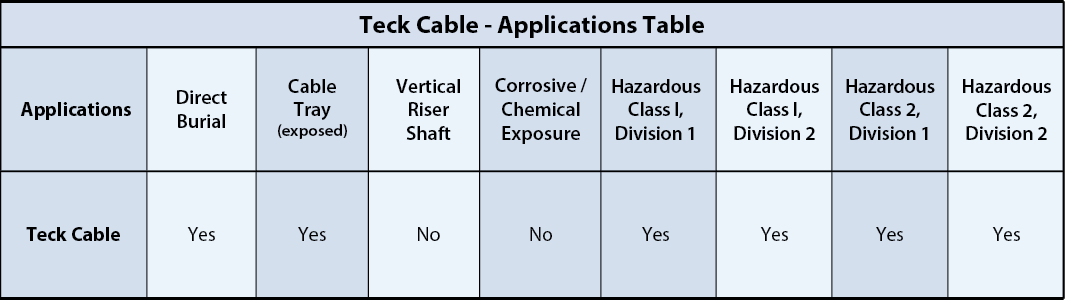

Teck Cable - Applications Table




Vertical Riser Teck Cable

Low Voltage & Medium Voltage

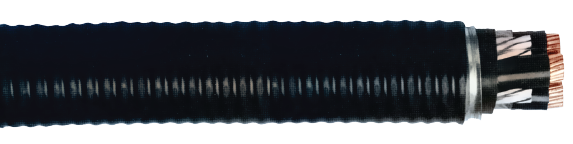

Prsymian Vertical Riser Teck Cable



Description:

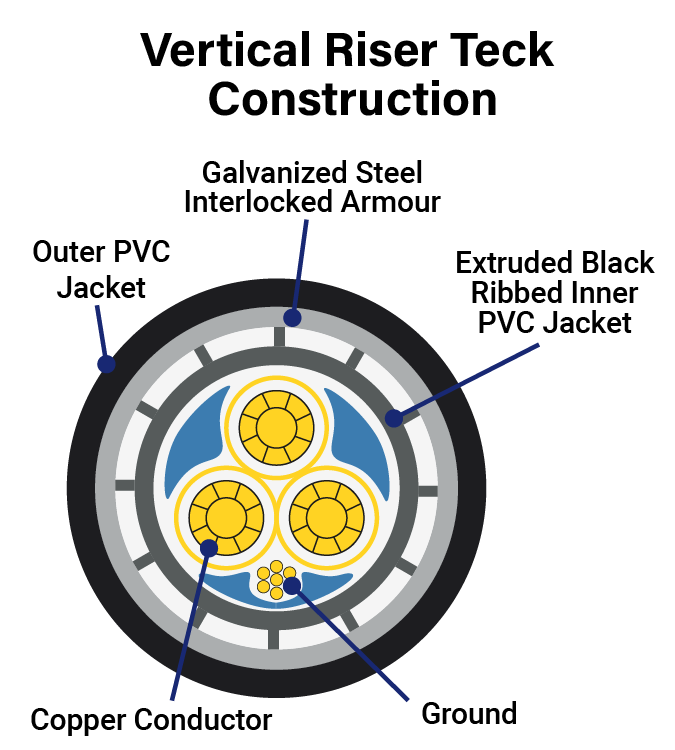

Vertical Riser Teck is an armoured cable engineered for vertical installations with integrated support capability.

Features:

  • Internal raised ribbed jacket design grips armour to prevent conductor slippage in vertical runs.
  • Uses galvanized steel interlocked armour or aluminum interlocked armour (AIA) for stable vertical performance.
  • Supports installation in shafts, risers, and other continuous vertical runs.
  • Available in low voltage (LV) 600V & 1000V, and medium voltage (MV) ratings up to 35kV.

Table:

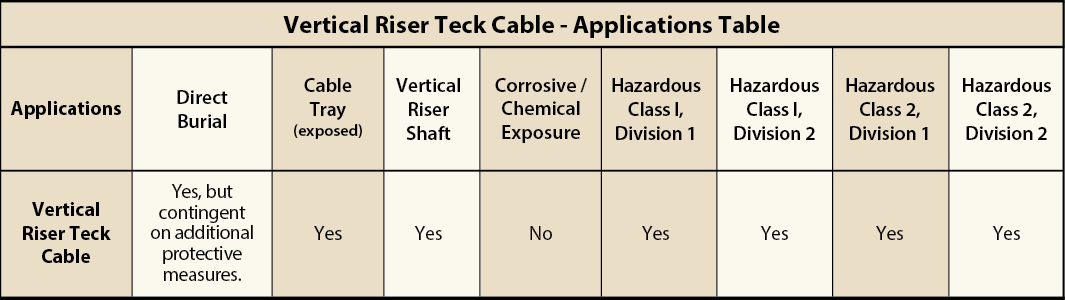

Vertical Riser Teck Cable - Applications Table




AIRGUARD® Cable

Low Voltage & Medium Voltage

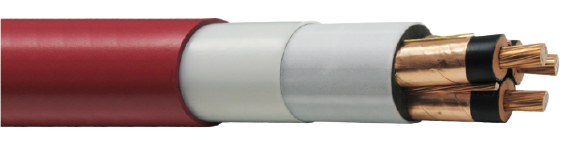

Prysmian Airguard Cable



Description:

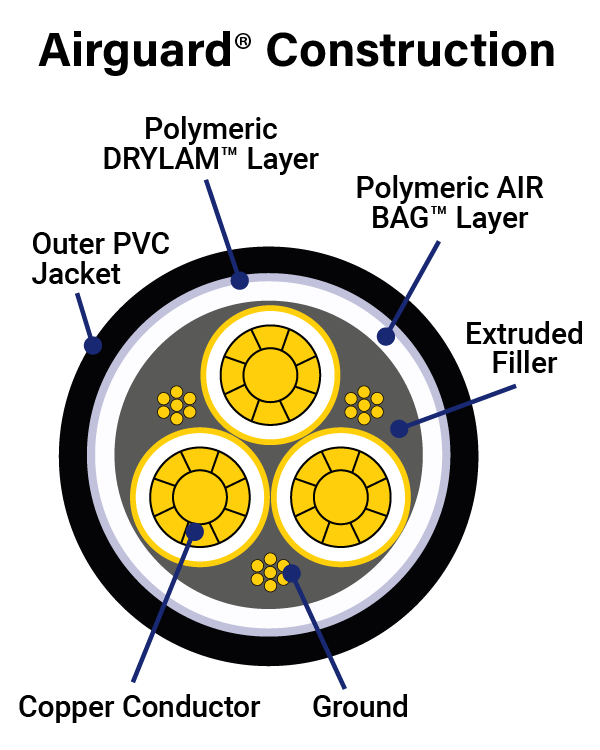

AIRGUARD® is a non‑metallic solution for long‑haul sidewall pressure concerns, vertical runs, and extreme harsh environments.

Low Voltage (LV) AIRGUARD® Features:

  • Designed for harsh industrial applications including offshore and heavy-duty environments.
  • Polymeric AIR BAG™ layer provides strong mechanical and chemical protection.
  • Ripcord design allows for quicker, safer cable preparation in the field.
  • Available in low voltage power and low voltage VFD from 600V & 1000V.
  • Instrumentation and fiber optic constructions available upon request.

 Medium Voltage (MV) AIRGUARD® Features:

  • Built with full shielded construction for industrial power application.
  • Polymeric AIR BAG™ layer provides high crush, impact resistance and protection.
  • DRYLAM™ barrier protects against moisture, hydrocarbons, and chemicals.
  • Designed for reliable performance in demanding environments including direct burial.
  • Available from 5kV - 35kV.

Table:

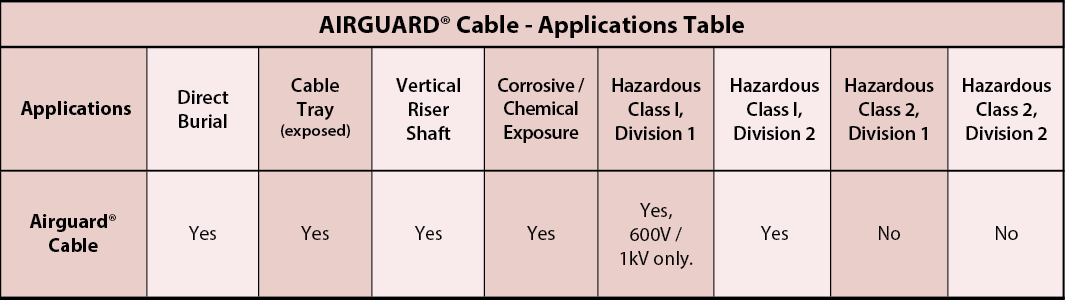

AIRGUARD® Cable - Applications Table





Product FAQ

Q: What is Teck Cable used for?
A: Industrial feeders, lighting, and equipment wiring where armoured mechanical protection is required.

Q: When should I choose Vertical Riser Teck?
A: For continuous vertical shafts and risers where conductor slippage and pull strength are concerns.

Q: When is AIRGUARD® preferred?
A: In corrosive or high crush environments where polymeric protection is required for sidewall pressure concerns due to long pull runs. Confirm model specs for specialized applications.


Summary

Texcan supplies Teck, Vertical Riser Teck, and AIRGUARD® cables for hazardous sites, multi‑story risers, and specialty industrial environments. Each cable is specifically designed for industrial application, giving contractors reliable solutions without compromise.
