What is MV-105 Cable?
MV-105 cable is the standard medium voltage power cable used across the United States for industrial, utility, and large commercial power distribution systems. Built to UL 1072 standards, MV-105 is designed to deliver long-term electrical reliability and thermal stability in demanding environments.
While Canadian industrial projects primarily rely on MV TECK armoured cable, MV-105 dominates the U.S. market, where unarmoured cable in conduit is preferred. This difference stems from distinct regional installation practices and code requirements.
In the past decade, MV-105 has gained dual UL and CSA listings, allowing it to be used across North American projects. In Canada, MV-105 is typically selected for short runs, or when or MV TECK cable is unavailable due to lead-time or minimum-order constraints.
Construction and Design Features
MV-105 cables are designed for medium-voltage applications from 5kV to 35kV, with “105” indicating a maximum conductor operating temperature of 105°C in dry and wet locations.

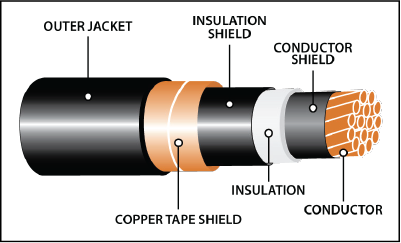

Typical construction includes compact stranded copper or aluminum conductors surrounded by an extruded semi-conducting shield for stress control. Insulation is usually EPR rated for -40°C to 105°C, with TRXLPE (Tree-Retardant XLPE) as a custom-made option. A second semi-conducting shield provides even charge distribution, while a helically applied 5 mil copper tape with 25% overlap serves as the metallic shield. There are other shielding options, please reach out for more information regarding these.
The assembly is finished with a durable, flame-retardant PVC outer jacket, resistant to moisture and sunlight. This construction provides long-term thermal stability, environmental protection, and flexibility during installation.
Applications
MV-105 has become the “workhorse” of medium-voltage power cables, offering reliable performance and versatility across a broad range of installation environments. Below is an overview of common applications for MV-105 based on the conditions for use found in CEC Table 19.
MV-105 as an Alternative to MV TECK Cable

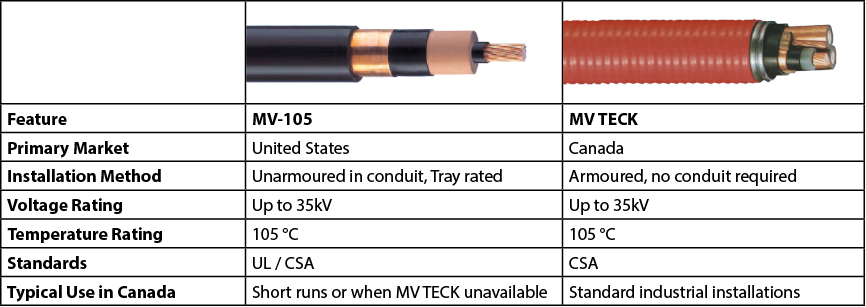

Both cables serve industrial and utility applications, MV-105 and MV TECK are built for similar applications with the difference of armouring:
In essence, MV TECK provides a rugged all-in-one armoured solution favoured in Canada’s harsh environments, while MV-105 offers a lightweight, flexible conduit-based alternative.
MV-105 Applications in Wet or Dry Locations, Includes:
- Conduit and raceways
- Cable trays
- Direct burial
- Indoor and outdoor environments
- Medium-voltage feeders and distribution circuits
- Utility substations and switchgear connections
- Power generation facilities
- Industrial and manufacturing plants
- Renewable energy systems (solar, wind)
- Underground distribution systems
Standards and Approvals
MV-105 cables are manufactured and tested to meet the following:
- UL 1072 – Medium Voltage Power Cable
- CSA C68.10 Shielded Power Cables for Commercial and Industrial Applications - 5 to 46kV
Thanks to dual UL and CSA approvals, MV-105 is recognized under both the NEC (NFPA 70) and the Canadian Electrical Code, ensuring compliance for cross-border installations.
Summary
MV-105 cable delivers proven electrical performance, heat resistance, and mechanical strength for medium-voltage power distribution up to 35kV. With its dual UL/CSA approval, it provides a convenient and compliant solution for projects across North America.
In Canada, MV-105 is most often used for short runs or when MV TECK cables are unavailable, serving as a practical alternative where flexibility, stock availability, or project timing are key considerations.
