50-1695a
BELDEN CANADA INC - CND$ 1695A Coaxial Cable Digital Video, RG6/U, Solid 18 AWG 75 O
50-1695a
BELDEN CANADA INC - CND$ 1695A Coaxial Cable Digital Video, RG6/U, Solid 18 AWG 75 O
ManufacturerBELDEN CANADA INC - CND$
ManufacturerProductNumber:1695A
Description

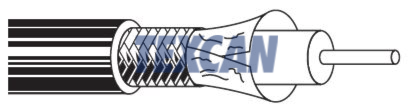

Coax, RG6, 18 AWG, 300V, 1 Conductor, Solid bare copper, Foam Fluorinated Ethylene Propylene (FFEP), Combination, 1st shield-100% Foil Tape, 2nd shield 95% Tinned Copper braid, LS PVC, CSA, Natural
Specifications
| Armoured | No | Shield | Combination |
| AWG Size | 18 | No of Conductors | 1 |
| Flame Test Rating | No | Cable Type | Coax |
| Approximate Diameter (in.) | 0.17 | Color | Natural |
| Conductor Material | Solid bare copper | CSA | Yes |
| Insulation Material | Foam Fluorinated Ethylene Propylene (FFEP) | Name | Belden Coax Cable RG6 300V 1 Conductor 18 AWG Natural |
| Net Weight KG/ KM | 49 | Net Weight LB/MFT | 33 |
| # of Shields | 2 | Options | Multiple construction and colors available upon request |
| Shield 1 Coverage | 100% | Shield 1 Material | Aluminum Foil Shield |
| Shield 2 Coverage | 95% | Shield 2 Material | Tinned Copper Braid |
| Shield Material | 1st shield-100% Foil Tape, 2nd shield 95% Tinned Copper braid | Voltage | 300V |
