50-5400fe

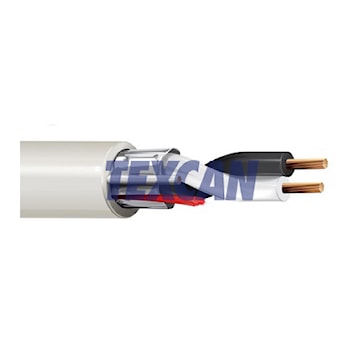

BELDEN CANADA INC - CND$ 5400FE 008 Multi-Conductor Cable Commercial Audio, Shielded 2 Conductors PVC Jacket
50-5400fe
BELDEN CANADA INC - CND$ 5400FE 008 Multi-Conductor Cable Commercial Audio, Shielded 2 Conductors PVC Jacket
ManufacturerBELDEN CANADA INC - CND$
ManufacturerProductNumber:5400FE 008
Description
Multi-Conductor, 20 AWG, 300V, 2 Conductors, Stranded (7 x 26) BC - Bare Copper, Polypropylene, Overall Shield, Aluminum Foil-PolYester Tape w/Shorting Fold 100%, PVC, CSA, FT4, Grey
Specifications
| Armoured | No | Shield | Overall Shield |
| AWG Size | 20 | No of Conductors | 2 |
| Flame Test Rating | Yes | Cable Type | Multi-Conductor |
| Approximate Diameter (in.) | 0.142 | Color | Grey |
| Conductor Material | Stranded (7 x 26) BC - Bare Copper | CSA | Yes |
| Name | Belden Multi-Conductor Cable 300V 2 Conductors 20 AWG Grey | Net Weight KG/ KM | 19 |
| Net Weight LB/MFT | 13 | # of Shields | 1 |
| Options | Multiple construction and colors available upon request | Shield 1 Coverage | 100% |
| Shield 1 Material | Aluminum Foil Shield | Shield Material | Aluminum Foil-PolYester Tape w/Shorting Fold 100% |
| Voltage | 300V |
