50-5506fe
BELDEN CANADA INC - CND$ 5506FE F/SHLD 8C-22 SBC PVC/PVC GREY
50-5506fe
BELDEN CANADA INC - CND$ 5506FE F/SHLD 8C-22 SBC PVC/PVC GREY
ManufacturerBELDEN CANADA INC - CND$
ManufacturerProductNumber:5506FE
Description

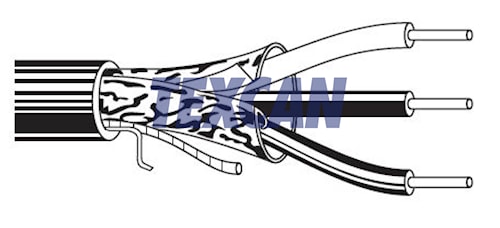

Multi-Conductor, 22 AWG, 300V, 8 Conductors, Stranded (7 x 30) BC - Bare Copper, Polypropylene, Overall Shield, Aluminum Foil-PolYester Tape w/Shorting Fold 100%, PVC, CSA, FT4, Grey
Specifications
| Armoured | No | Shield | Overall Shield |
| AWG Size | 22 | No of Conductors | 8 |
| Flame Test Rating | Yes | Cable Type | Multi-Conductor |
| Approximate Diameter (in.) | 0.179 | Color | Grey |
| Conductor Material | Stranded (7 x 30) BC - Bare Copper | CSA | Yes |
| Name | Belden Multi-Conductor Cable 300V 8 Conductors 22 AWG Grey | Net Weight KG/ KM | 45 |
| Net Weight LB/MFT | 30 | # of Shields | 1 |
| Options | Multiple construction and colors available upon request | Shield 1 Coverage | 100% |
| Shield 1 Material | Aluminum Foil Shield | Shield Material | Aluminum Foil-PolYester Tape w/Shorting Fold 100% |
| Voltage | 300V |
