50-8105-010aia
Overall Beldfoil® Multi-Conductor Cable Low Capacitance 24 AWG 5 Pair Conductors Tinned Copper Black AIA
50-8105-010aia
Overall Beldfoil® Multi-Conductor Cable Low Capacitance 24 AWG 5 Pair Conductors Tinned Copper Black AIA
ManufacturerBELDEN
ManufacturerProductNumber:8105
Description

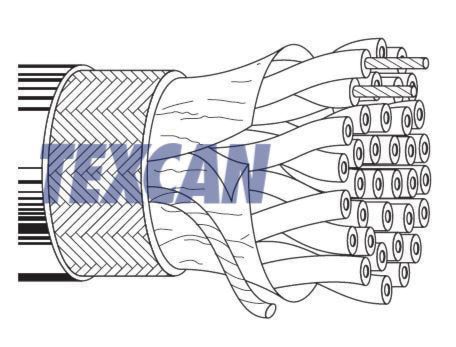

Multi-Pair, 24 AWG, 300V, 5 Pairs, Stranded (7x32) TC - Tinned Copper, Cellular Polyolefin, Combination, Tape Aluminum Foil-PolYester100% / 2 Braid TC - Tinned Copper 65%, PVC, AIA, CSA, Black
Specifications
| Armoured | Yes | Shield | Combination |
| AWG Size | 24 | # of Pairs | 5 |
| Flame Test Rating | No | Cable Type | Multi-Pair |
| Approximate Diameter (in.) | 0.609 | Color | Black |
| Conductor Material | Stranded (7x32) TC - Tinned Copper | CSA | Yes |
| Name | Belden Multi-Pair Cable 300V 5 Pairs 24 AWG Black | Net Weight KG/ KM | 229 |
| Net Weight LB/MFT | 154 | # of Shields | 2 |
| Options | Multiple construction and colors available upon request | Shield 1 Coverage | 100% |
| Shield 1 Material | Aluminum Foil Shield | Shield 2 Coverage | 65% |
| Shield 2 Material | Tinned Copper Braid | Shield Material | Tape Aluminum Foil-PolYester100% / 2 Braid TC - Tinned Copper 65% |
| Voltage | 300V |
