50-8208

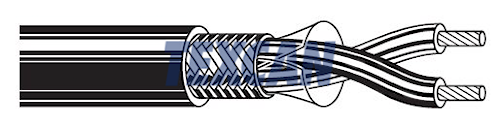

BELDEN CANADA INC - CND$ 8208 Overall Beldfoil® Multi-Conductor Cable Electronic 18 AWG 2, 1 Pair Conductors Tinned Copper Chrome
50-8208
BELDEN CANADA INC - CND$ 8208 Overall Beldfoil® Multi-Conductor Cable Electronic 18 AWG 2, 1 Pair Conductors Tinned Copper Chrome
Description
Pair, 18 AWG, 300V, 1 Pair, Stranded (16x30) TC - Tinned Copper, Rubber, Overall Shield, TC - Tinned Copper 73%, PVC, Black
Specifications
| Armoured | No | Shield | Overall Shield |
| AWG Size | 18 | # of Pairs | 1 |
| Flame Test Rating | No | Cable Type | Pair |
| Approximate Diameter (in.) | 0.257 | Color | Black |
| Conductor Material | Stranded (16X30) TC - Tinned Copper | CSA | No |
| Insulation Material | Rubber | Name | Belden Multi-Pair Cable 300V 1 Pair 18 AWG Black |
| Net Weight KG/ KM | 54 | Net Weight LB/MFT | 36 |
| # of Shields | 1 | Options | Multiple construction and colors available upon request |
| Shield 1 Coverage | 73% | Shield 1 Material | Tinned Copper Braid |
| Shield Material | TC - Tinned Copper 73% | Voltage | 300V |
