50-8216
BELDEN CANADA INC - CND$ 8216 Coaxial Cable RG174/U 26 AWG 50 O
50-8216
BELDEN CANADA INC - CND$ 8216 Coaxial Cable RG174/U 26 AWG 50 O
ManufacturerBELDEN CANADA INC - CND$
ManufacturerProductNumber:8216
Description

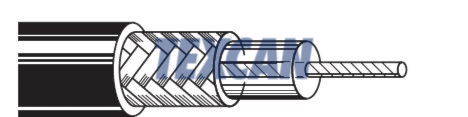

Coax, RG174, 26 AWG, 30V, 1 Conductor, Stranded bare copper-covered steel, Polyethylene (PE), Overall Shielded, 90% Tinned Copper Braid, PVC, Black
Specifications
| Armoured | No | Shield | Overall Shielded |
| AWG Size | 26 | No of Conductors | 1 |
| Flame Test Rating | No | Cable Type | Coax |
| Approximate Diameter (in.) | 0.11 | Color | Black |
| Conductor Material | Stranded bare copper-covered steel | CSA | No |
| Insulation Material | Polyethylene (PE) | Name | Belden Coax Cable RG174 300V 1 Conductor 20 AWG Black |
| Net Weight KG/ KM | 12 | Net Weight LB/MFT | 8 |
| # of Shields | 1 | Options | Armored construction and multiple colors available upon request |
| Shield 1 Coverage | 90% | Shield 1 Material | Bare Copper Braid |
| Shield Material | 90% Tinned Copper Braid | Voltage | 30V |
