50-83706
BELDEN CANADA INC - CND$ 83706 FB/SHLD 6C-16 STC FEP/FEP PL
50-83706
BELDEN CANADA INC - CND$ 83706 FB/SHLD 6C-16 STC FEP/FEP PL
ManufacturerBELDEN CANADA INC - CND$
ManufacturerProductNumber:83706
Description

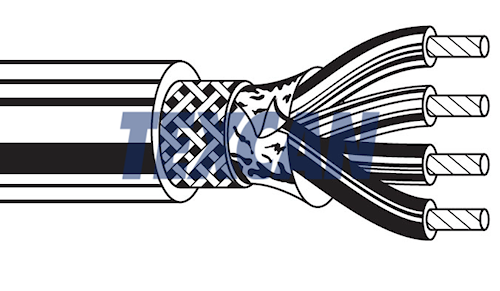

Multi-Conductor, 16 AWG, 300V, 6 Conductors, Sranded (19x39) TC - Tinned Copper, FEP - Fluorinated Ethylene Propylene, Combination, Tape Aluminum Foil-PolYester 100% / TC Tinned Copper Braid 85%, FEP, CSA, FT6, Red
Specifications
| Armoured | No | Shield | Combination |
| AWG Size | 16 | No of Conductors | 6 |
| Flame Test Rating | Yes | Cable Type | Multi-Conductor |
| Approximate Diameter (in.) | 0.265 | Color | Red |
| Conductor Material | Stranded (19x39) TC - Tinned Copper | CSA | Yes |
| Insulation Material | Fluorinated Ethylene Propylene (FEP) | Jacket Material | Fluorinated Ethylene Propylene (FEP) |
| Name | Belden Multi-Conductor Cable 300V 6 Conductors 16 AWG Red | Net Weight KG/ KM | 126 |
| Net Weight LB/MFT | 85 | # of Shields | 2 |
| Options | Multiple construction and colors available upon request | Shield 1 Coverage | 100% |
| Shield 1 Material | Aluminum Foil Shield | Shield 2 Coverage | 85% |
| Shield 2 Material | Tinned Copper Braid | Shield Material | Tape Aluminum Foil-PolYester 100% / Braid TC - Tinned Copper 85% |
| Voltage | 300V |
