50-83007

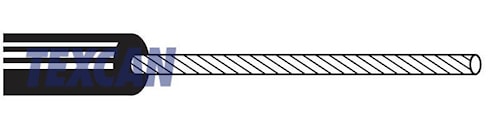

Texcan Generic 83007 Belden Single Conductor Cable 600V 1 Conductor 20 AWG Black
50-83007
Texcan Generic 83007 Belden Single Conductor Cable 600V 1 Conductor 20 AWG Black
ManufacturerTexcan Generic
ManufacturerProductNumber:83007
Description
Single Conductor, 20 AWG, 600V, 1 Conductor, Stranded 19x32 SPC - Silver Plated Copper, BC - Bare Copper, TFE - Tetrafluoroethylene, Unshielded, TFE, , Black
Specifications
| Armoured | No | Shield | Unshielded |
| AWG Size | 20 | No of Conductors | 1 |
| Flame Test Rating | No | Cable Type | Conductor |
| Approximate Diameter (in.) | 0.058 | Color | Black |
| Conductor Material | Stranded 19x32 SPC - Silver Plated Copper | CSA | No |
| Jacket Material | Tetrafluoroethylene (TFE) | Name | Belden Single Conductor Cable 600V 1 Conductor 20 AWG Black |
| Net Weight KG/ KM | 9 | Net Weight LB/MFT | 6 |
| Options | Multiple construction and colors available upon request | Voltage | 600V |
