50-8455

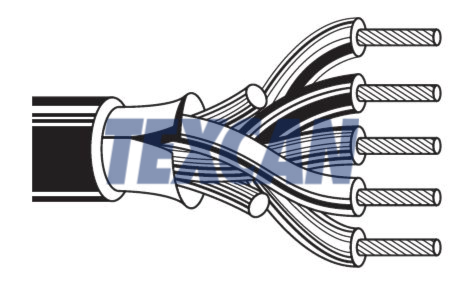

BELDEN CANADA INC - CND$ 8455 Overall Beldfoil® Portable Cordage Type SO 20, 18 AWG 5 Conductors Tinned Copper Black
Multi-Conductor, 20/18 AWG, 300V, 5 Conductors, Stranded (20-3c 26x34), (18-2c 41x34) TC-Tinned, EPDM - Ethylene Propylene Diene MoNomer Rubber, Unshielded, Rubber, Black
Armoured | No | Shield | Unshielded |
AWG Size | 20/18 | No of Conductors | 5 |
Flame Test Rating | No | Cable Type | Multi-Conductor |
Approximate Diameter (in.) | 0.28 | Color | Black |
Conductor Material | Stranded (20-3c 26x34), (18-2c 41x34) TC-Tinned | CSA | No |
Jacket Material | Rubber | Name | Belden Multi-Conductor Cable 300V 5 Conductors 20/18 AWG Black |
Net Weight KG/ KM | 74 | Net Weight LB/MFT | 50 |
Options | Multiple construction and colors available upon request | Voltage | 300V |
