50-8428

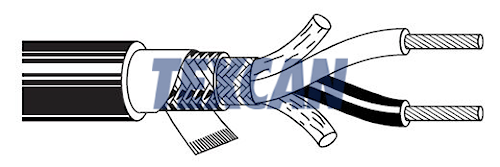

BELDEN CANADA INC - CND$ 8428 Overall Beldfoil® Microphone Cable 18 AWG 2 Conductors Tinned Copper Black
50-8428
BELDEN CANADA INC - CND$ 8428 Overall Beldfoil® Microphone Cable 18 AWG 2 Conductors Tinned Copper Black
ManufacturerBELDEN CANADA INC - CND$
ManufacturerProductNumber:8428
Description
Multi-Conductor, 18 AWG, 600V, 2 Conductors, Stranded (41X34) TC - Tinned Copper, EPDM - Ethylene Propylene Diene MoNomer Rubber, Overall Shield,85% Tinned Copper Braid, Neoprene, Black
Specifications
| Armoured | No | Shield | Overall Shield |
| AWG Size | 18 | No of Conductors | 2 |
| Flame Test Rating | No | Cable Type | Multi-Conductor |
| Approximate Diameter (in.) | 0.29 | Color | Black |
| Conductor Material | Stranded (41X34) TC - Tinned Copper | CSA | No |
| Jacket Material | Neoprene | Name | Belden Multi-Conductor Cable 600V 2 Conductors 16 AWG Red |
| Net Weight KG/ KM | 80 | Net Weight LB/MFT | 54 |
| # of Shields | 1 | Options | Multiple construction and colors available upon request |
| Shield 1 Coverage | 85% | Shield 1 Material | Tinned Copper Braid |
| Shield Material | 85% Tinned Copper Braid | Voltage | 600V |
