50-85230
BELDEN CANADA INC - CND$ 85230 HOOKUP 2C-20 TEFZEL SHLD 100%
50-85230
BELDEN CANADA INC - CND$ 85230 HOOKUP 2C-20 TEFZEL SHLD 100%
ManufacturerBELDEN CANADA INC - CND$
ManufacturerProductNumber:85230
Description

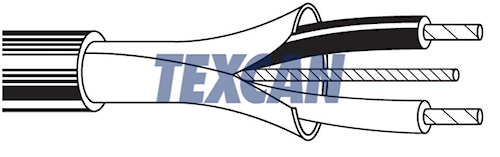

Multi-Conductor, 20 AWG, 300V, 2 Conductors, Stranded (7 x 28) BC - Bare Copper,ETFE - Ethylene Tetrafluoroethylene, Overall Shield, Tape Aluminum-Kapton® Foil 100%, LS ETFE, Natural
Specifications
| Armoured | No | Shield | Overall Shield |
| AWG Size | 20 | No of Conductors | 2 |
| Flame Test Rating | No | Cable Type | Multi-Conductor |
| Approximate Diameter (in.) | 0.182 | Color | Natural |
| Conductor Material | Stranded (7x28 ) TC - Tinned Copper | CSA | No |
| Jacket Material | Ethylene Tetrafluoroethylene (ETFE) | Name | Belden Multi-Conductor Cable 300V 2 Conductors 20 AWG Natural |
| Net Weight KG/ KM | 57 | Net Weight LB/MFT | 38 |
| # of Shields | 1 | Options | Multiple construction and colors available upon request |
| Shield 1 Coverage | 100% | Shield 1 Material | Aluminum Foil Shield |
| Shield Material | Tape Aluminum-Kapton® Foil 100% | Voltage | 300V |
