50-8760
F/SHLD 1PR-18 STC PE/PVC GREY
Description

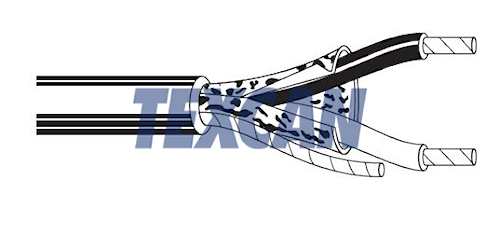

Pair, 18 AWG, 300V, 1 Pair, Stranded (16X30) TC - Tinned Copper, PVC - Polyvinyl Chloride, Overall Shield, Tape Aluminum Foil-PolYester100%, PVC, Grey
Specifications
| Armoured | No | Shield | Overall Shield |
| AWG Size | 18 | # of Pairs | 1 |
| Flame Test Rating | No | Cable Type | Pair |
| Approximate Diameter (in.) | 0.238 | Color | Grey |
| Conductor Material | Stranded (16X30) TC - Tinned Copper | CSA | No |
| Name | Belden Multi-Pair Cable 300V 1 Pair 18 AWG Grey | Net Weight KG/ KM | 49 |
| Net Weight LB/MFT | 33 | # of Shields | 1 |
| Options | Multiple construction and colors available upon request | Shield 1 Coverage | 100% |
| Shield 1 Material | Aluminum Foil Shield | Shield Material | Tape Aluminum Foil-PolYester100% |
| Voltage | 300V |
