50-88105
FB/SHLD 5PR-24 PLENUM FEP/PVDF
Description

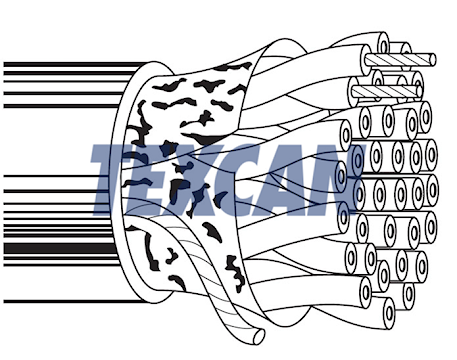

Multi-Pair, 24 AWG, 300V, 5 Pairs, Stranded (7X32) BC - Bare Copper, Foam Fluorinated Ethylene Propylene (FFEP), Overall Shield, Tape Aluminum Foil-PolYester100%, PVDF, CSA, FT6, Red
Specifications
| Armoured | No | Shield | Overall Shield |
| AWG Size | 24 | # of Pairs | 5 |
| Flame Test Rating | Yes | Cable Type | Multi-Pair |
| Approximate Diameter (in.) | 0.267 | Color | Red |
| Conductor Material | Stranded (7x32 ) TC - Tinned Copper | CSA | Yes |
| Insulation Material | Foam Fluorinated Ethylene Propylene (FFEP) | Jacket Material | Fluor Copolymer (PVDF) |
| Name | Belden Multi-Pair Cable 300V 5 Pairs 24 AWG Red | Net Weight KG/ KM | 60 |
| Net Weight LB/MFT | 40 | # of Shields | 1 |
| Options | Multiple construction and colors available upon request | Shield 1 Coverage | 100% |
| Shield 1 Material | Aluminum Foil Shield | Shield Material | Tape Aluminum Foil-PolYester100% |
| Voltage | 300V |
