50-9066
Coaxial Cable RG6/U, Solid 18 AWG 75 O 350V
50-9066
Coaxial Cable RG6/U, Solid 18 AWG 75 O 350V
ManufacturerBELDEN CANADA INC - CND$
ManufacturerProductNumber:9066
Description

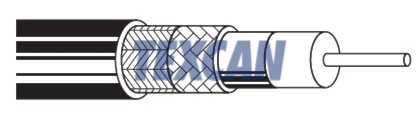

Coax, RG6, 18 AWG, 350V, 1 Conductor, Bare copper-covered steel, Gas-injected foam polyethylene, Combination, 100% Aluminum foil tape/60% Aluminum Braid, PE, FT4, CSA, Black
Specifications
| Armoured | No | Shield | Combination |
| AWG Size | 18 | No of Conductors | 1 |
| Flame Test Rating | No | Cable Type | Coax |
| Approximate Diameter (in.) | 0.27 | Color | Black |
| Conductor Material | Bare copper-covered steel | CSA | No |
| Jacket Material | Polyethlene (PE) | Name | Belden Coax Cable RG6 350V 1 Conductor 18 AWG Black |
| Net Weight KG/ KM | 39 | Net Weight LB/MFT | 26 |
| # of Shields | 2 | Options | Multiple construction and colors available upon request |
| Shield 1 Coverage | 100% | Shield 1 Material | Aluminum Foil Shield |
| Shield 2 Coverage | 60% | Shield 2 Material | Aluminum Braid |
| Shield Material | 100% Aluminum foil tape/60% Aluminum Braid | Voltage | 350V |
