50-9167
BELDEN CANADA INC - CND$ 9167 Coaxial Cable RG59, Solid 20 AWG 75 O
50-9167
BELDEN CANADA INC - CND$ 9167 Coaxial Cable RG59, Solid 20 AWG 75 O
ManufacturerBELDEN CANADA INC - CND$
ManufacturerProductNumber:9167
Description

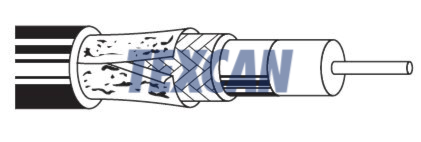

Coax, RG59, 20 AWG, 300V, 1 Conductor, SPCCS - Silver Plated Copper Covered Steel, Gas-injected FPE - Foam Polyethylene, Overall Shielded, 100%Tape Foil-PolYester Tape-Aluminum , PVC, FT4, CSA, Black
Specifications
| Armoured | No | Shield | Overall Shielded |
| AWG Size | 20 | No of Conductors | 1 |
| Flame Test Rating | Yes | Cable Type | Coax |
| Approximate Diameter (in.) | 0.242 | Color | Black |
| Conductor Material | SPCCS - Silver Plated Copper Covered Steel | CSA | Yes |
| Jacket Material | Polyvinyl Chloride (PVC) | Name | Belden Coax Cable RG59 300V 1 Conductor 20 AWG Black |
| Net Weight KG/ KM | 42 | Net Weight LB/MFT | 28 |
| # of Shields | 1 | Options | Armored construction and multiple colors available upon request |
| Shield 1 Coverage | 100% | Shield 1 Material | Aluminum Foil Shield |
| Shield Material | 100%Tape Foil-PolYester Tape-Aluminum | Voltage | 300V |
