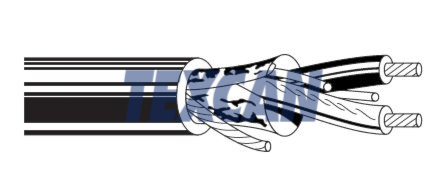

Coax, Twinaxial, 22 AWG, 300V, 1 Conductor, Tinned copper (19x34) conductor , Foamed Polyethylene insulated Overall Shielded, 100% Aluminum Foil Tape, PVC, CSA, FT4, Black
Description
Specifications
| Armoured | No | Shield | Overall Shielded |
| AWG Size | 22 | # of Pairs | 1 |
| Flame Test Rating | Yes | Cable Type | Coax |
| Approximate Diameter (in.) | 0.275 | Color | Black |
| Conductor Material | Tinned copper (19x34) conductor | CSA | Yes |
| Name | Belden Coax Cable Twinaxial 300V 1 Conductor 22 AWG Black | Net Weight KG/ KM | 231 |
| Net Weight LB/MFT | 155 | # of Shields | 1 |
| Options | Multiple construction and colors available upon request | Shield 1 Coverage | 100% |
| Shield 1 Material | Aluminum Foil Shield | Shield Material | 100% Aluminum Foil Tape |
| Voltage | 300V |
