50-9773

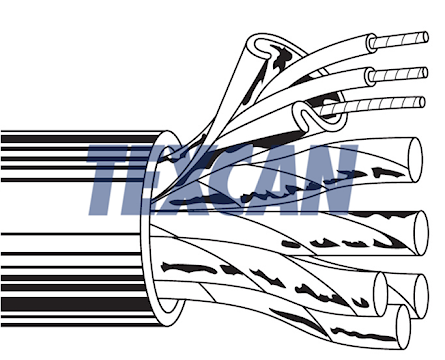

Multi-Conductor Cable Audio/Control/Instrument, Shielded 6 Conductors PVC Jacket 18AWG
50-9773
Multi-Conductor Cable Audio/Control/Instrument, Shielded 6 Conductors PVC Jacket 18AWG
ManufacturerBELDEN CANADA INC - CND$
ManufacturerProductNumber:9773
Description
Multi-Pair, 18 AWG, 300V, 3 Pairs, Stranded (19X30) TC - Tinned Copper, PP - Polypropylene, Individually Shield, Tape Aluminum Foil-PolYester100%, PVC, CSA, Grey
Specifications
| Armoured | No | Shield | Individually Shield |
| AWG Size | 18 | # of Pairs | 3 |
| Flame Test Rating | No | Cable Type | Multi-Pair |
| Approximate Diameter (in.) | 0.404 | Color | Grey |
| Conductor Material | Stranded (19X30) TC - Tinned Copper | CSA | Yes |
| Name | Belden Multi-Pair Cable 300V 3 Pairs 18 AWG Grey | Net Weight KG/ KM | 124 |
| Net Weight LB/MFT | 83 | # of Shields | 2 |
| Options | Multiple construction and colors available upon request | Shield 1 Coverage | 100% |
| Shield 1 Material | Aluminum Foil Shield | Shield 2 Coverage | 100% |
| Shield 2 Material | Aluminum Foil Shield | Shield Material | Tape Aluminum Foil-PolYester100% |
| Voltage | 300V | UPC | 781600000774 |
