52-113-0021
COAX RG213/U 13/7 97% TCB FT1
52-113-0021
COAX RG213/U 13/7 97% TCB FT1
Description

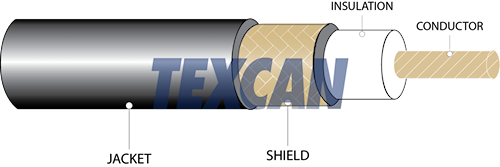

Coax, RG213/U, 13 AWG, 300V, 1 Conductor, Stranded bare copper, Solid polyethylene, Overall, 97% Tinned Copper Braid, PVC, FT1, CSA, Black
Specifications
| Armoured | No | Shield | Overall |
| AWG Size | 13 | No of Conductors | 1 |
| Flame Test Rating | Yes | Cable Type | Coax |
| Approximate Diameter (in.) | 0.42 | Conductor Material | Stranded bare copper |
| CSA | Yes | Jacket Material | Polyvinyl Chloride (PVC) |
| Name | Coax Cable RG213/U 300V 1 Conductor 13 AWG Black | Net Weight KG/ KM | 176 |
| Net Weight LB/MFT | 118 | # of Shields | 1 |
| Options | Other coloured outer jacket and constructions available upon request , Stranded bare copper conductors | Shield 1 Coverage | 0.97 |
| Shield 1 Material | Tinned Copper Braid | Shield Material | 1st shield - 97% Tinned copper braid |
| Voltage | 300 |
