52-174-0011
Texcan Generic COAXIAL RG 174/U
52-174-0011
Texcan Generic COAXIAL RG 174/U
ManufacturerTexcan Generic
ManufacturerProductNumber:
Description

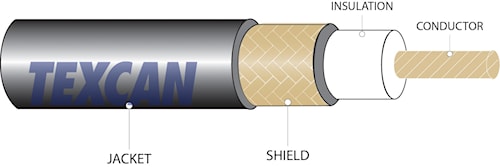

Coax, RG174/U, 26 AWG, 300V, 1 Conductor, Stranded bare copper-covered steel, Solid polyethylene, Overall, 90% Tinned Copper Braid, PVC, FT1, CSA, Black
Specifications
| Armoured | No | Shield | Overall |
| AWG Size | 26 | No of Conductors | 1 |
| Flame Test Rating | Yes | Cable Type | Coax |
| Approximate Diameter (in.) | 0.11 | Conductor Material | Stranded Bare Copper Covered Steel |
| CSA | Yes | Jacket Material | Polyvinyl Chloride (PVC) |
| Name | Coax Cable RG174/U 300V 1 Conductor 26 AWG Black | Net Weight KG/ KM | 16 |
| Net Weight LB/MFT | 11 | # of Shields | 1 |
| Options | Other coloured outer jacket and constructions available upon request , Stranded bare copper conductors | Shield 1 Coverage | 0.9 |
| Shield 1 Material | Tinned Copper Braid | Shield Material | 1st shield - 90% Tinned copper braid |
| Voltage | 300 |
