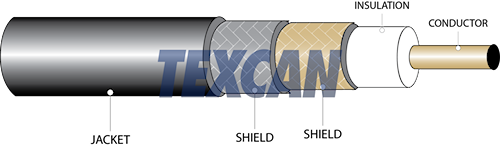

Coax, RG11, 14 AWG, 300V, 1 Conductor, Solid Bare Copper, Foamed FEP, Combination, Tape Aluminum Foil-Polyester100%/ Braid Tinned Copper 60%, Polymer, FT6, CSA, Black
Description
Specifications
| Armoured | No | Shield | Combination |
| AWG Size | 14 | No of Conductors | 1 |
| Flame Test Rating | Yes | Cable Type | Coax |
| Approximate Diameter (in.) | 0.35 | Conductor Material | Solid bare copper |
| CSA | Yes | Jacket Material | Polymer |
| Name | Coax Cable RG11 300V 1 Conductor 14 AWG Black | Net Weight KG/ KM | 101 |
| Net Weight LB/MFT | 68 | # of Shields | 2 |
| Options | Other coloured outer jacket and constructions available upon request , Stranded bare copper conductors | Shield 1 Coverage | 1 |
| Shield 1 Material | Aluminum Foil Shield | Shield 2 Coverage | 0.6 |
| Shield 2 Material | Tinned Copper Braid | Shield Material | 1st shield - Tape Aluminum Foil-Polyester100%. 2nd shield - Braid Tinned Copper 60% |
| Voltage | 300 |
