52-79-148-91
COAXIAL RG6 QUAD SHIELD BLACK
Description

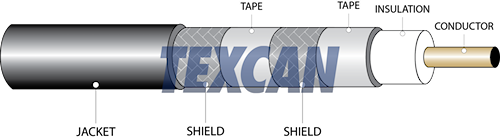

Coax, RG6, 18 AWG, 300V, 1 Conductor, Solid copper clad steel, Foam Polyethylene, Combination, 1 & 2: 100% Bonded Polyester/Aluminum Tape plus 40% Aluminum Braid, 3 & 4: 100% Polyester/Aluminum Tape plus 60% Aluminum Braid, PVC, FT4, CSA, Black
Specifications
| Armoured | No | Shield | Combination |
| AWG Size | 18 | No of Conductors | 1 |
| Flame Test Rating | Yes | Cable Type | Coax |
| Approximate Diameter (in.) | 0.307 | Conductor Material | Solid copper clad steel |
| CSA | Yes | Insulation Material | Foam Polyethylene (FPE) |
| Jacket Material | Polyvinyl Chloride (PVC) | Name | Coax Cable RG6 300V 1 Conductor 18 AWG Black |
| Net Weight KG/ KM | 54 | Net Weight LB/MFT | 36 |
| # of Shields | 4 | Options | Other coloured outer jacket and constructions available upon request , Stranded bare copper conductors |
| Shield 1 Coverage | Aluminum tape 100% c/w 40% Aluminum Braid | Shield 1 Material | Aluminum tape 100% c/w 40% Aluminum Braid |
| Shield 2 Coverage | Aluminum tape 100% c/w 40% Aluminum Braid | Shield 2 Material | Aluminum tape 100% c/w 40% Aluminum Braid |
| Shield 3 Coverage | Aluminum tape 100% c/w 60% Aluminum Braid | Shield 3 Material | Aluminum tape 100% c/w 60% Aluminum Braid |
| Shield 4 Coverage | Aluminum tape 100% c/w 60% Aluminum Braid | Shield Material 4 | Aluminum tape 100% c/w 60% Aluminum Braid |
| Shield Material | 1 & 2 shield -100% Bonded Polyester/Aluminum Tape plus 40% Aluminum Braid, 3 & 4: 100% Polyester/Aluminum Tape plus 60% Aluminum Braid | Voltage | 300 |
