52-702-2404
Texcan Generic F/SHLD 4PR-24 STC SP PE/PVC
52-702-2404
Texcan Generic F/SHLD 4PR-24 STC SP PE/PVC
ManufacturerTexcan Generic
ManufacturerProductNumber:
Description

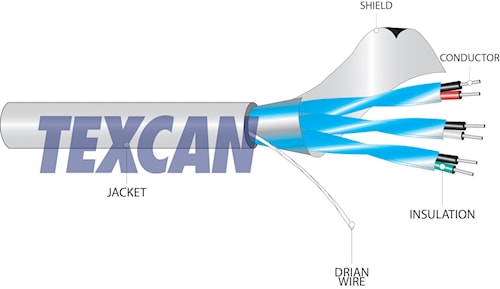

Multi-Pair, 24 AWG, 150V, 4 Pair, Stranded tinned copper conductor, Polyolefin, Individually, Individual Shield Pairs c/w Tinned Copper drain wire per shield, PVC, CSA, FT4, Grey
Specifications
| Armoured | No | Shield | Individually |
| AWG Size | 24 | # of Pairs | 4 |
| Flame Test Rating | Yes | Cable Type | Multi-Pair |
| Approximate Diameter (in.) | 0.268 | Conductor Material | Stranded tinned copper |
| CSA | Yes | Insulation Material | Polyolefin |
| Jacket Material | Polyvinyl Chloride (PVC) | Name | Multi-Pair 150V 4 Pair 24 AWG |
| Net Weight KG/ KM | 63 | Net Weight LB/MFT | 42 |
| # of Shields | 2 | Options | Other coloured outer jacket and constructions available upon request , Stranded bare copper conductors |
| Shield 1 Coverage | 1 | Shield 1 Material | Aluminum Foil Shield |
| Shield 2 Coverage | 1 | Shield 2 Material | Aluminum Foil Shield |
| Shield Material | Individual Shield Pairs c/w Tinned Copper drain wire per shield | Voltage | 150 |
