24903-17-060
VERT RISER 500-3C 5KV NS GSIA
24903-17-060
VERT RISER 500-3C 5KV NS GSIA
Description

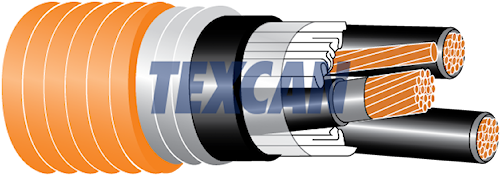

Verticial Teck Riser Mining Cable, 3 Conductor, 500 MCM, 5kV, Bare Copper, XLPE, PVC, Orange, GSIA, CSA, FT4
Specifications
| Armoured | Yes | Voltage | 5kV |
| AWG Size | 500 | No of Conductors | 3 |
| Armour Material | Galvanized Steel Interlocked Armour (GSIA) | Color | Orange |
| Conductor Material | Stranded bare copper | Copper Content KG/KM | 7198 |
| Copper Content LB/MFT | 4837 | CSA | Yes |
| Flame Test Rating | Yes | Insulation Material | Tree-Retardant Cross-Linked Polyethylene (TR-XLPE) |
| Jacket Material | Polyvinyl Chloride (PVC) | Name | Vertical Teck Riser Mining Cable 5kV 3C 500 kcmil |
| Options | colours and custom designs available upon request , Other sizes |
