24904-06-030

VERT RISER 4/0-3C 15KV SIA133%

Length
Documents Documents

Description

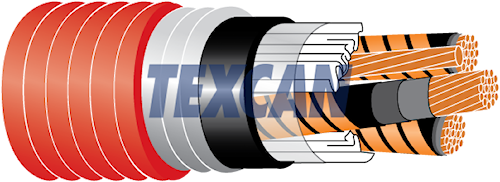

Verticial Teck Riser Mining Cable, 3 Conductor, 4/0 AWG, 15kV, Bare Copper, XLPE, PVC, Red, GSIA, CSA, FT4

Specifications

Armoured Yes Voltage 15kV
AWG Size 4/0 No of Conductors 3
Armour Material Galvanized Steel Interlocked Armour (GSIA) Color Red
Copper Content KG/KM 3454 Copper Content LB/MFT 2321
CSA Yes Flame Test Rating Yes
Insulation Material Tree-Retardant Cross-Linked Polyethylene (TR-XLPE) Jacket Material Polyvinyl Chloride (PVC)
Name Vertical Teck Riser Mining Cable 15kV 3C 4/0 AWG Options colours and custom designs available upon request , Other sizes
