11015-06-000
Texcan Generic NMD 3C-10 NMD90 CU 300V WHITE
11015-06-000
Texcan Generic NMD 3C-10 NMD90 CU 300V WHITE
Description

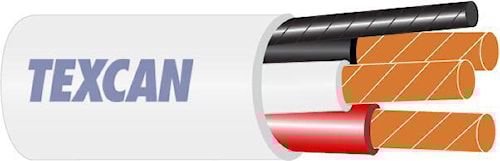

NMD90 Building Wire, 3 Conductor, 10 AWG, 300V, Solid Bare Copper, XLPE, PVC, White, CSA, FT1
Specifications
| Voltage | 300V | Armoured | No |
| AWG Size | 10 | No of Conductors | 3 |
| Conductor Material | Copper | Insulation Material | Cross-linked Polyethylene (XLPE) |
| Color | White | CSA | Yes |
| Flame Test Rating | Yes | Jacket Material | Polyvinyl Chloride (PVC) |
| Name | NMD90 Building Wire 10 AWG 3C CU 300V | Net Weight KG/ KM | 223 |
| Net Weight LB/MFT | 150 | Options | Aluminum conductor available upon request |
