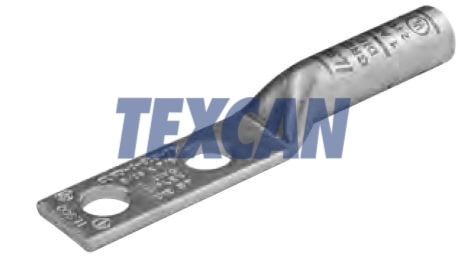

HDWR Lug 2 Hole 750 kcmil Long Flange

Quantity EA


Manufactured from high strength seamless copper tubing. Electro-Tin plated Maximum conductivity and excellent crimping characteristics Long barrel length with chamfered entry Color coded UL 486A 90°C Listed and CSA Certified for 600 Volts If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35KV For Copper conductor only Ilsco connectors are UL Listed and CSA Certified with ILSCO or other Manufacturers' tools UL File E6207


Wire Size 750 kcmil Stud Hole Diameter 0.562
Bolt Size 1/2 Barrel Length 2.875
CSA Yes Name HDWR Lug 2 Hole 750 kcmil Long Flange
Overall Length 6.777
